TV REMOTE
If you cannot use the Bluetooth App, its possible to use a TV remote adapter on the Robot,
and a TV remote control.

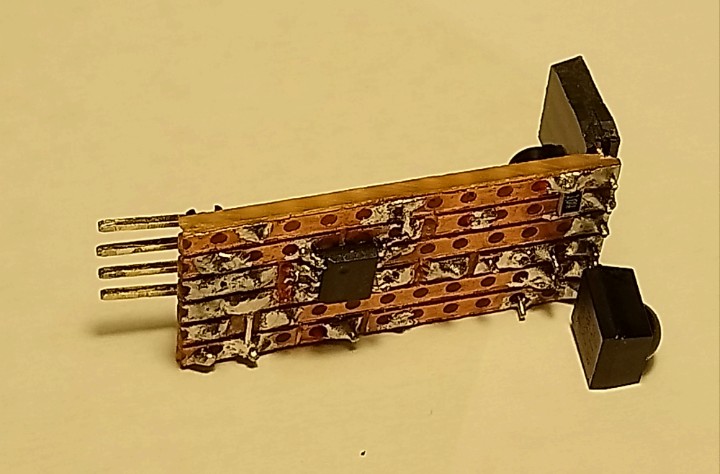

There is a different adapter to receive the Infra-red data:
Your program needs the following at the start
from Bluetooth import *
import params as p # imports basespeed, efactor, dfactor
BT = Bluetooth(99) # the 99 makes the port run at the right speed
Then, inside your loops, to allow commands and data update,
include the following
if (BT.Ready()):
BT.Cmd()
and use the following parameters:
p.basespeed for speed,
p.efactor for steering strength,
and p.dfactor for derivative.

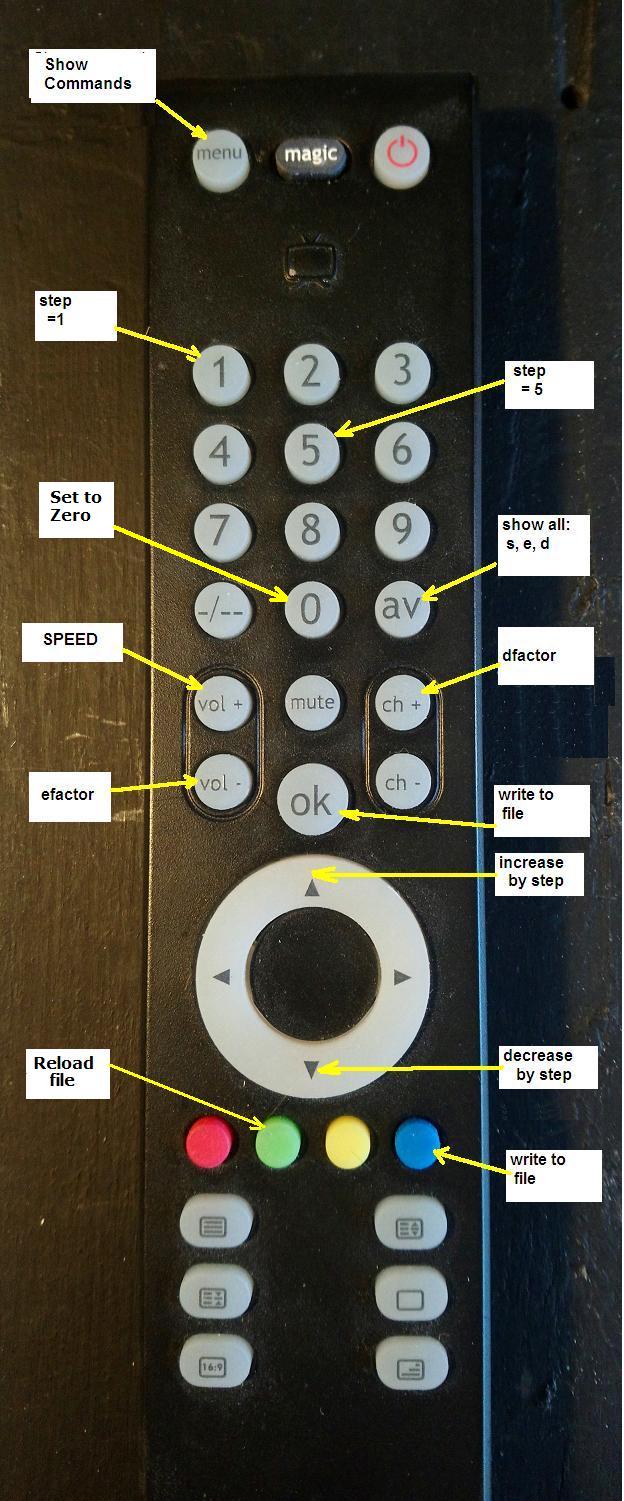

Commands ( - single keystroke)
These select which variable to change:
s (Vol+)
e (Vol-)
d (CH+)
(there are no print outs without Bluetooth)
These modify the selected variable:
0 (Zero) sets selected variable to zero
+ (Up arrow) increases the selected variable
- (Down arrow)decreases the selected variable (but not below zero)
1 sets the increase/decrease amount to 1
5 sets the increase/decrease amount to 5
Storage of variables:
w (ok or Blue) saves the variables to file params.py so they will survive power-down
r (Green ) re-reads variables from file params.py
- Go back to last saved set.
These two send outputs to the Thonny screen
? (Menu) gives this list of commands,
q (av) prints out all variable values.
