Worksheet 1

Worksheeet 1

Flash the on-board LED

1: Connect your computer to the Pico
This requires a USB lead (Micro USB not USC-C) between the computer
and the socket at the side of the Pico

2: Run Thonny on your computer

3: Get the Computer talking to the Pico

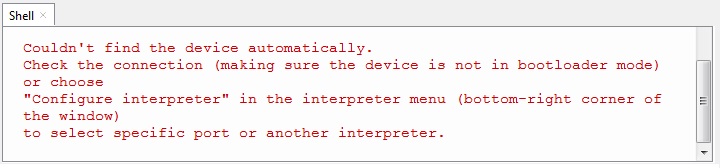

It may well be that the Thonny Shell window contains an error message
like this:-

in which case try
- disconnecting the USB cable
- clicking the stop button at the top of the screen.
- reconnecting the USB cable
- clicking the stop button again.

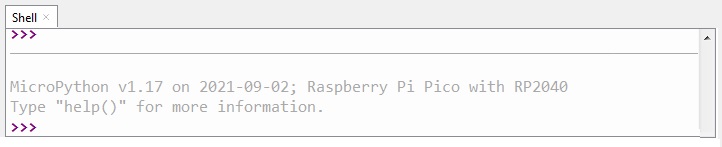

If successful then the Shell window will display a message like this:

You can now enter commands for the Pico at the >>> prompt at the bottom

4: Enter a command to allow access to the Pins on the chip

  >>>  from machine import Pin

  >>>

Thonny will send the command to the Pico and put another ">>>" prompt
to say it has accepted your line.

5: Enter a command to give the name "led" to the on-board LED

  >>>  led = Pin(25, Pin.OUT)

  >>>

Thonny will set up the name "led" to be the on-board LED

6: Enter commands to turn led on and off

  >>>  led.on()

  >>> led.off()

   >>>

Thonny will send these commands to the pico as you type
